The seller is looking to sell this lot of  4000A Switchboard, 1600A – ABB ReliaGear & ABB neXT switchboard breakers to recover investment and create additional storage space for upcoming operations.

Lot Details:

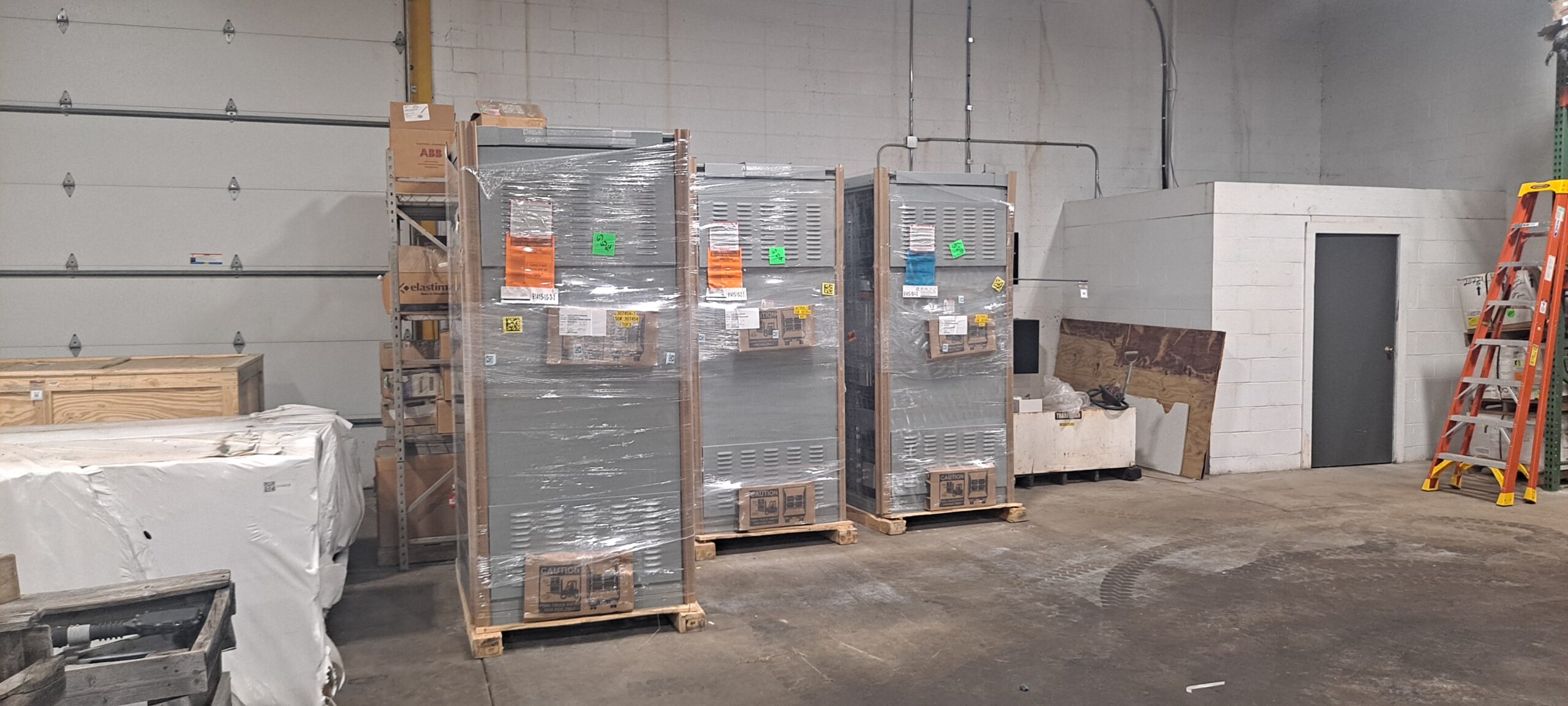

4000A Switchboard

ABB ReliaGear Switchboard

• Access to: front only
• Phase: 3P4W
• Class: 2
• Ampere: 4000
• Label: U/L SE
• BUS MTL: AI 750A/in^2
• Voltage: 480Y/277V
• Plate: Tin Plate
• Style: ReliaGear
• Rating: Fully
• Bus Bracing (RMS SYM): 65000A
• Dev. Min. Int. Rating (RMS SYM): 65000A
• Total Line Up Width: 120

NOTES:

1. Switchboard furnished with a rainproof TYPE 3R Flatroof (non walk-in) enclosure.
2. Listed NEMA 3R rated Hub and Conduit should be used to maintain environmental integrity of the enclosure.
3. Equipment ground bus furnished with lugs.
4. Switchboard furnished with Nameplates.
5. Shipping splits between each section, ship each section separately.
6. SWBD furnished with CPT, fuse block, wired to a terminal block. Wire per 10087089G3.
7. Shunt trip and aux wired to TB.
8. Device is furnished with integral ground fault protection.
9. Device furnished with ETU (LSIG) programmer with RELT protection. Wire per 152691415_Relt.
10. Device furnished with 120V AC/125V DC Shunt Trip.
11. Device furnished with padlocking provisions.
12. Device furnished with (4) 240V AC/125-250 DC auxiliary switches (SPDT).
13. All Nameplates to be fastened with screws.
14. Switchboard furnished with hinged gutter covers.
15. Switchboard furnished with fully rated panel.
16. Device furnished with TMA programmer.
17. Device furnished with TMF programmer.
18. Device furnished with 1Q + 1SY 250V Auxiliary Contacts.
19. Provision For Future Extension.

1600A – ABB ReliaGear

• Access to: front only
• Phase: 3P4W
• Class: 2
• Ampere: 1600
• Label: U/L SE
• BUS MTL: AI 750A/in^2
• Voltage: 208/120V
• Plate: Tin Plate
• Style: ReliaGear
• Rating: Fully
• Bus Bracing (RMS SYM): 65000A
• Dev. Min. Int. Rating (RMS SYM): 65000A

NOTES:

1.  Switchboard furnished with a rainproof TYPE 3R (non-walk-in) enclosure.
   1. NOTE: See plan view for details.Need additonal 1 inch space clearance on top and 1.5 inch clearance on the rear of the swbd.
2. Equipment ground bus furnished with lugs.
3. Switchboard furnished with Nameplates.
4. All Nameplates to be fastened with screws.
5. Shipping splits between each section, ship each section separately.
6. Switchboard furnished with hinged gutter covers.
7. Switchboard furnished with fully rated panel.
8. Device is 100 percent rated.
9. Device furnished with ETU (LSI) programmer.
10. Device is furnished with RELT (Reduced Energy Let Through).
11. Device furnished with padlocking provisions.
12. Device requires RELT or ZSI feature if Authority having jurisdiction has adopted NEC 2014 code requirements.
13. Device Furnished with Ekip DIP (LSI) Programmer.
14. Device Furnished with Thermal-Magnetic Fixed Trip.
15. Estimated total factory connected wiring points for the lineup 24.
16. Estimated shipping weight for the lineup is 1619 lbs.

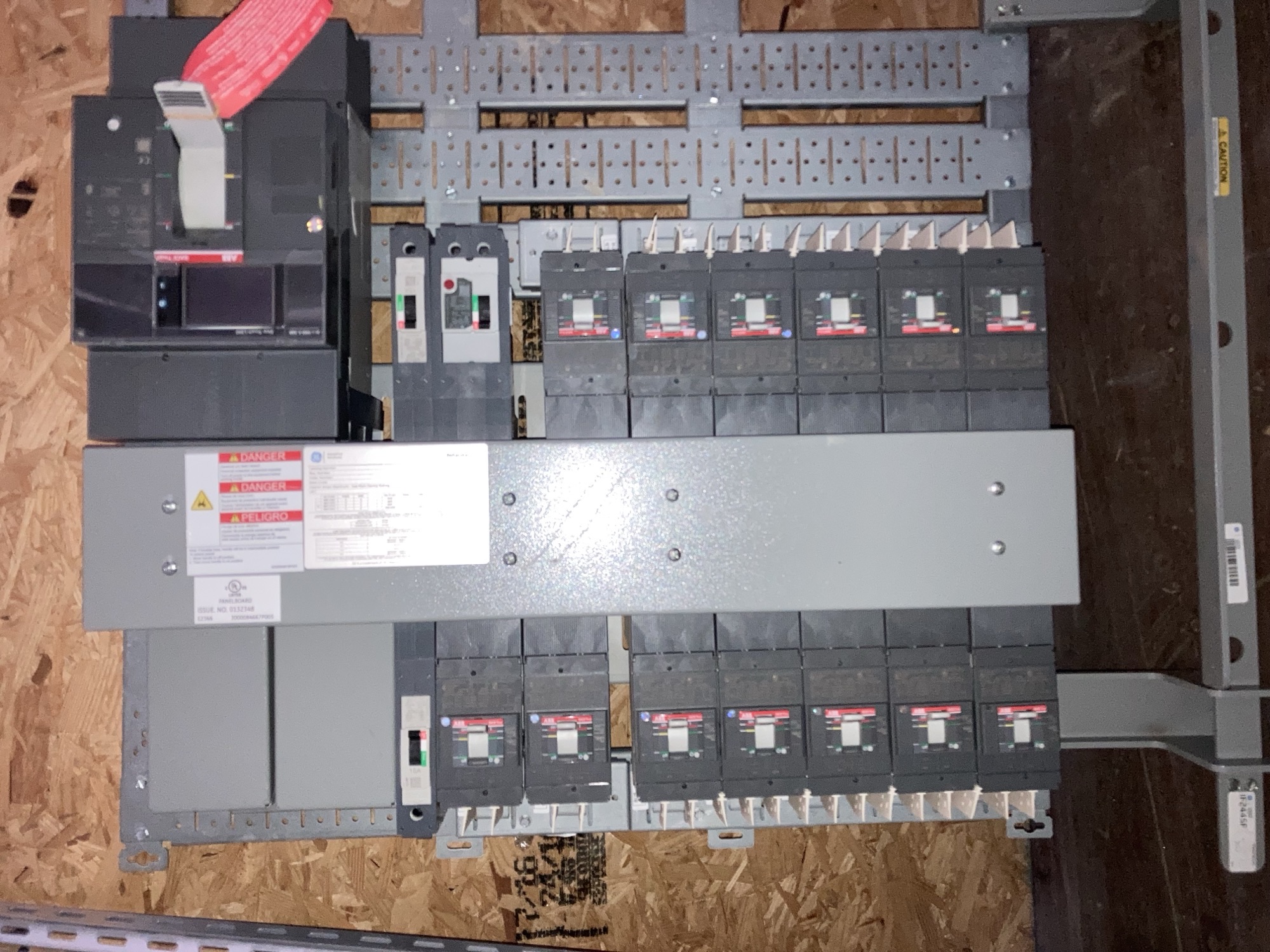

1000A Switchboard Breakers (just breakers, no enclosure)

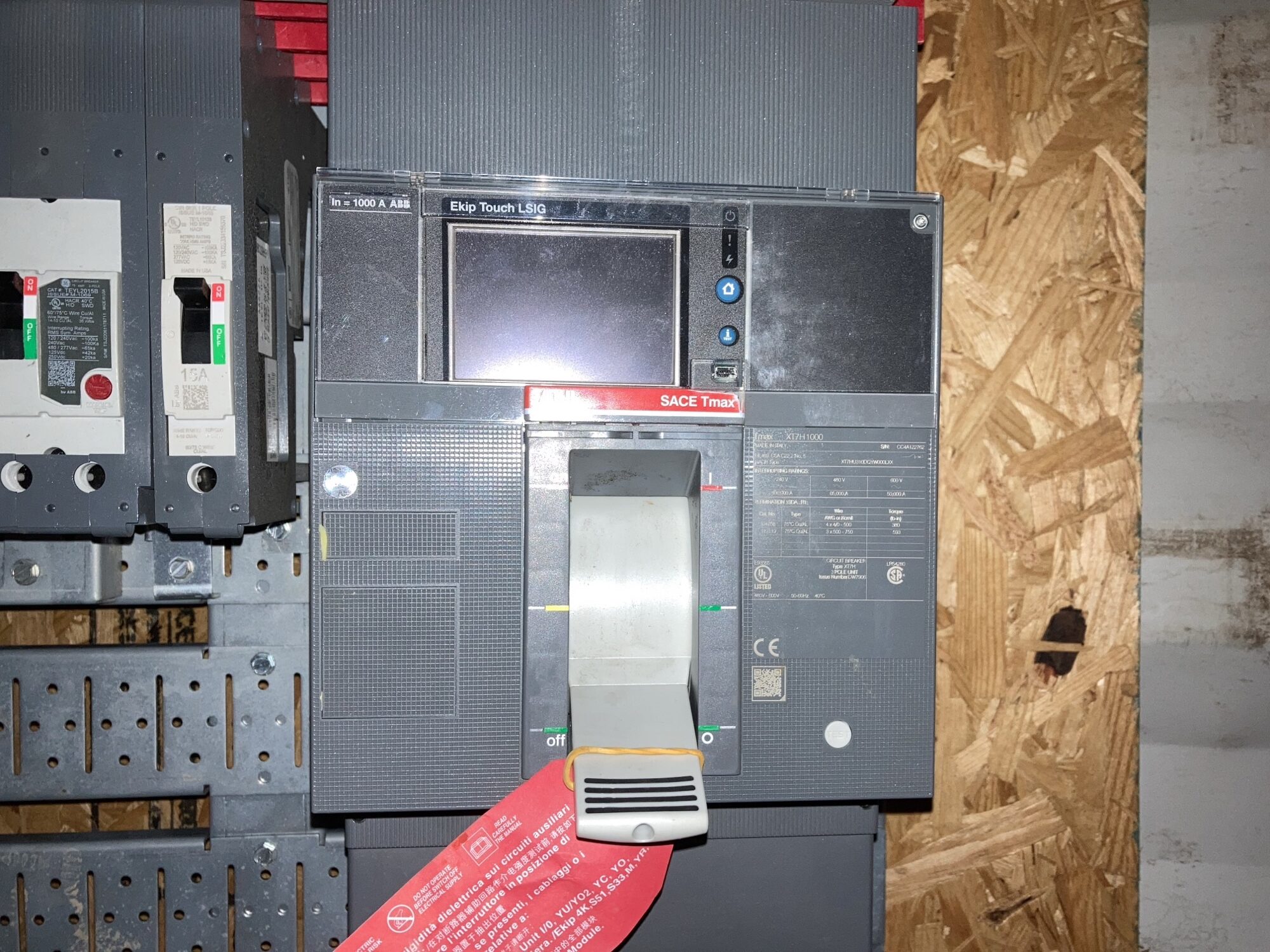

ABB neXT switchboard breakers – main 1000A breaker + branch breakers

BRANCH DEVICES:

AMPS/SENSOR/POLES DESCRIPTION

10x 80A /- /3P XT1HU3080AYD000XXX

2x 20A /- /3P XT1HU3020AYD000XXX

1x 15A /- /3P XT1HU3015AYD000XXX

1x 15A /- /2P TEYALFCABAXXXXXX

1 (1) 14-10 AWG

1x 15A /- /1P TEYALEC0CAXXXXXX

1 (1) 14-10 AWG

1x 15A /- /1P TEYALEC0AAXXXXXX

1 (1) 14-10 AWG

Material Condition:

• Condition: This is new, factory wrapped, and ready for pickup.
• Recommended Application: Safely control electrical power facility distribution.
